EMI and EMC Detector Card (Fault Detector)-
Package - Standalone Available to integrate with different other systems.
Usage - Can be integrated with different systems to improve their behaviour when fault is encountered.
Product Specifications -

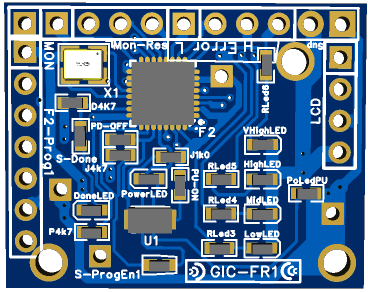

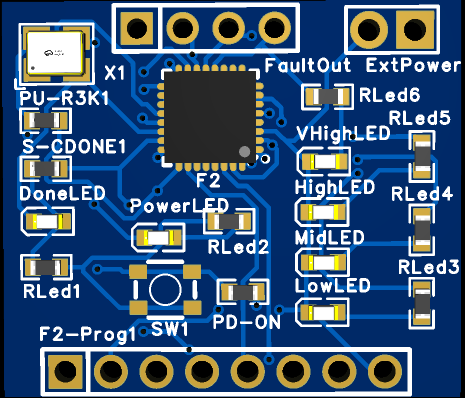

EMI and EMC Detector ER
Extended Voltage Range
Size: 29mm X 23mm
The Card can work with interfacing circuitry. Example – Servo Control, Battery Control, Gyroscope Control, Engine Control, or any other control system.
Power Supply support – 1.6V to 5.5V.
Signal Interface – LVTTL

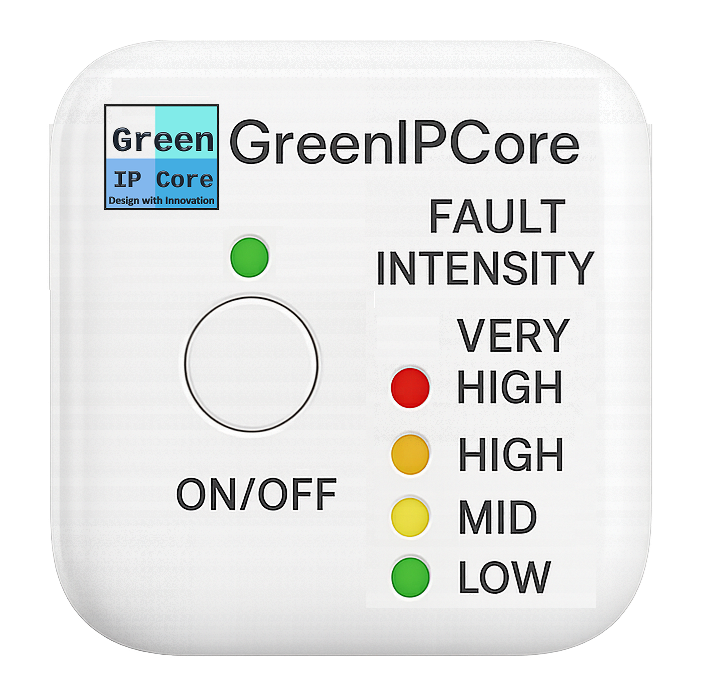

The Card gives out fault intensity indicators like –
1. Low Fault.
2. Medium Fault,
3. High Fault,
4. Very High Fault
User can implement their system behaviour with different fault conditions and make more reliable solutions.

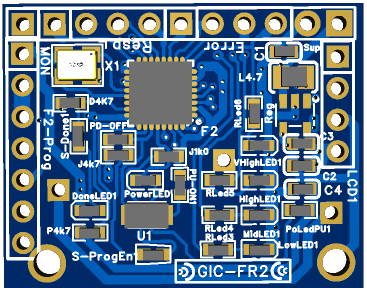

EMI and EMC Detector SR
Standard 3.3V
Size: 29mm X 23mm
The Card can work with interfacing circuitry. Example – Servo Control, Battery Control, Gyroscope Control, Engine Control, or any other control system.
Power Supply support – 2.7V to 3.6V.
Signal Interface – LVTTL
The Card gives out fault intensity indicators like –
1. Low Fault.
2. Medium Fault,
3. High Fault,
4. Very High Fault
User can implement their system behaviour with different fault conditions and make more reliable solutions.

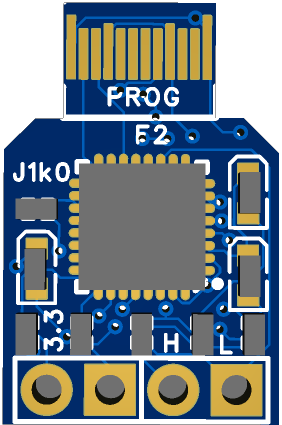

EMI and EMC Detector SRS
Standard 3.3V
Size: 11mm X 17mm
The Card can work with interfacing circuitry. Example – Servo Control, Battery Control, Gyroscope Control, Engine Control, or any other control system.
Power Supply support – 2.7V to 3.6V.
Signal Interface – LVTTL
The Card gives out fault intensity indicators like –
1. Low Fault.
2. High Fault,
User can implement their system behaviour with different fault conditions and make more reliable solutions.
To buy the Fault Detector Card, please contact us here –
Understand More about EMI and EMC indused Faults -
More Details on environmental hazards, please look here
More Details on USAGE,
Please look here
